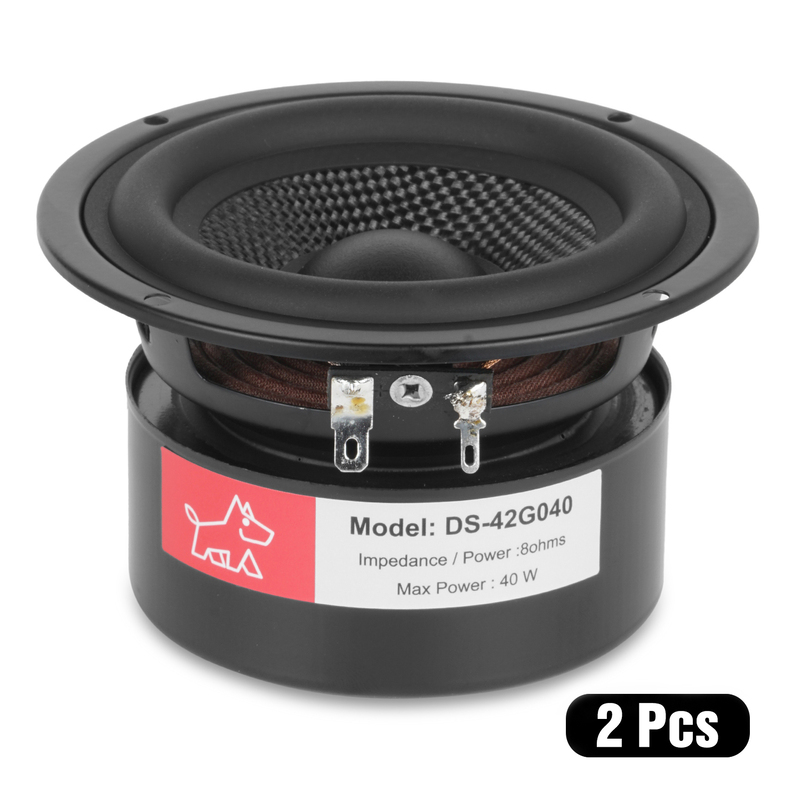

DS-42G040 4" MID BASS 8 Ohms Double magnet Hifi Driver ( 2 pcs )
Rs.1,799.00 Rs.2,999.00
- 4 inch fullrange woofer
- 85 ferrite magnet
- 25 core high temperature resistant voice coil,
- ASV aluminum bobbin High strength reversed steel basket Glass Fiber Cone
- Double magnet with magnet shield cover
- Frequency Response:69Hz-10KHz 86dB
- Sensitivity 40W rated power
- Suitable for bookshelf speaker,Center Speaker , and floorstand speaker
Product Details
- Nominal diameter: 4 inch
- Nominal impedance: 8 Ω
- Power Rating: 40W
- Sensitivity(1w\1m): 86dB
- Frequency Range: 79Hz-10KHz
- Voice Coil Diameter: Ø25
- Magnet dimension: 85*32*15mm 7 0*24*10mm
- Fs: 79.653Hz
- Re: 7.200 ohm
- Qms: 5.118
- Qts: 0.817
- Vas: 513.978
- Cms: 129.785u M/N
- n.(%): 0.026%
- Bl: 10.678 T
- Sd: 5.281 m
