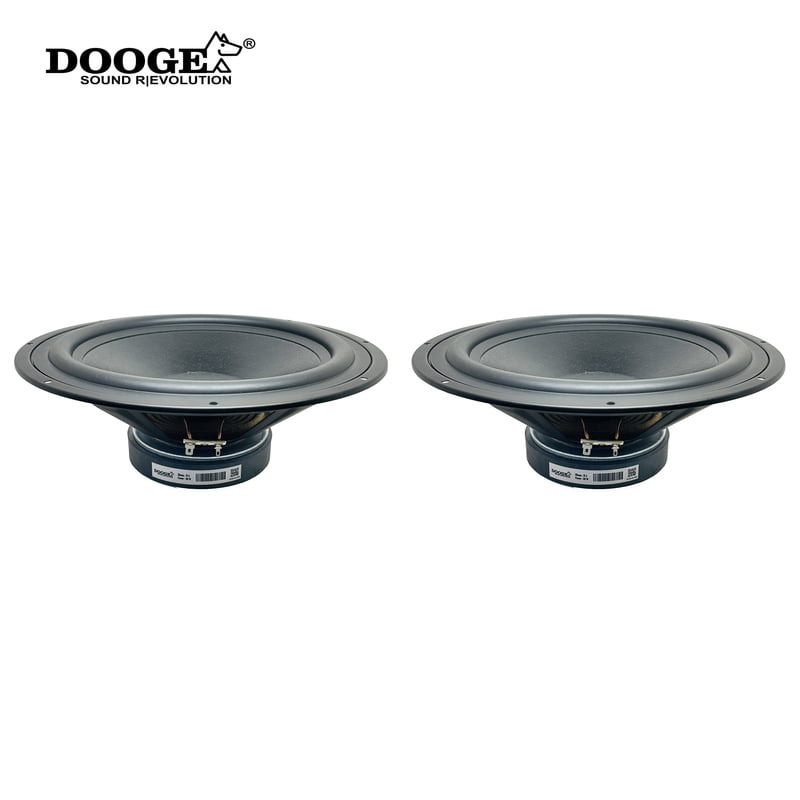

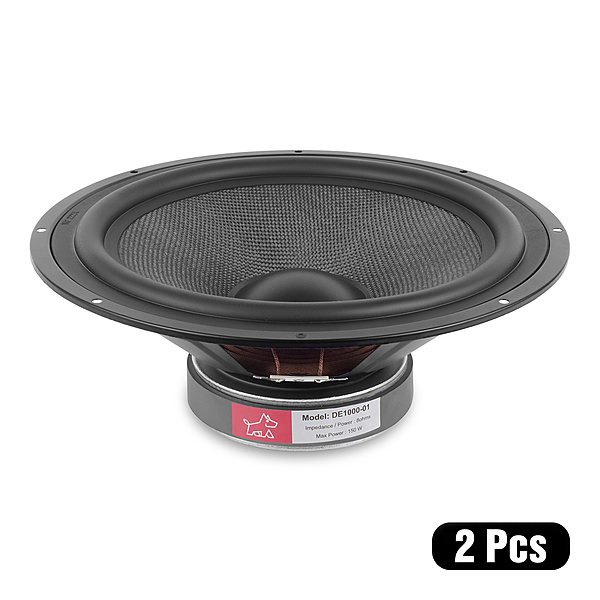

DE1000-01 Woofer 10" 4 Ohms 100 Watts (2 Pcs)
Rs.3,499.00 Rs.5,999.00
DE1000-01 Woofer 10' 4 Ohms 100 Watts (Set of 2).it has a 120 mm*20mm barium ferrite Y35 magnet. it has a coated paper cone material with rubber surrounding & dust cap is also coated paper. the frame is of iron.
Product Details
Electrical
Nominal Diameter - 10 Inch(290mm)
Nominal Impedance - 4 Ohms
Re - 3.678 Ohms
Resonance Frequency - 45.42Hz
Sensitivity, 1W/1m(E) - 88.51 dB
SPL = 91.88 dB SPL 2.83 Vrms
Power Capacity ,RMS(Pe) - 100W
Power Capacity ,Peak - 150W
Qms - 4.226
Qes - 1.092
Qts - 0.8676
VAS - 53.45 Ltr
BL - 6.754
C(ms) = 0.259 mm/N
L(e) = 0.2339 mH at 10kHz
n(0) = 0.4375 %
M(ms) = 47.45 grams
Piston Diam. = 221 mm (8.7 in.)
Mechanical
Voice Coil - 35mm
Winding Width - 14.5mm
Former - 2
Wire Type - copper
Magnet - 120mm*20mm Barium Ferrite
Cone Material - Coated paper
Surround Material - Rubber
Frame - iron
Dust cap - Coated paper
Here are the some examples of box design were we can use this woofers:
Example no.1) 3 way Box Design
Example no.2) 2 way Box Design with 2 Tweeters
