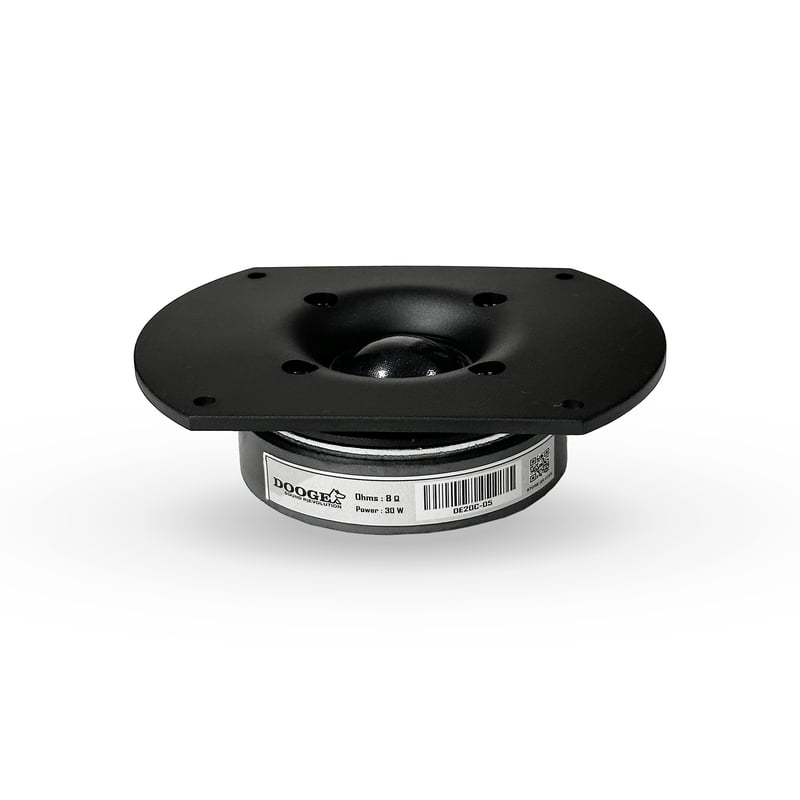

DE20C-05 SILK DOME TWEETER 3.22X4.33" 8Ohms 30W (1 Pcs)
Rs.699.00 Rs.1,499.00
DE20C-05 SILK DOME TWEETER 3.22X4.33" 8Ohms 30W. It has an unique cut design from both side with a great sound and a perfect fit for bookshelf speakers/soundbars/towerspeakers. It also has a flat frequency response with european diaphragm.
Product Details
Nominal Diameter - 3.22x4.33 Inch(82x110mm)
Nominal Impedance - 8 Ohms
Resonance Frequency - 1.1KHz
Sensitivity, 1W/1m(E) - 92dB
Power Capacity ,RMS(Pe) - 20W
Power Capacity ,Peak - 30W
Frequency Range(-10dB) - Fo--20 kHz
Voice Coil - 26mm
Winding Width - 2mm
Former - 2
Wire Type - CCWA
Magnet - 70mm Barium ferrite
Cone Material - Armilla
Frame - ABS Plastic
Cone Size - 30mm
