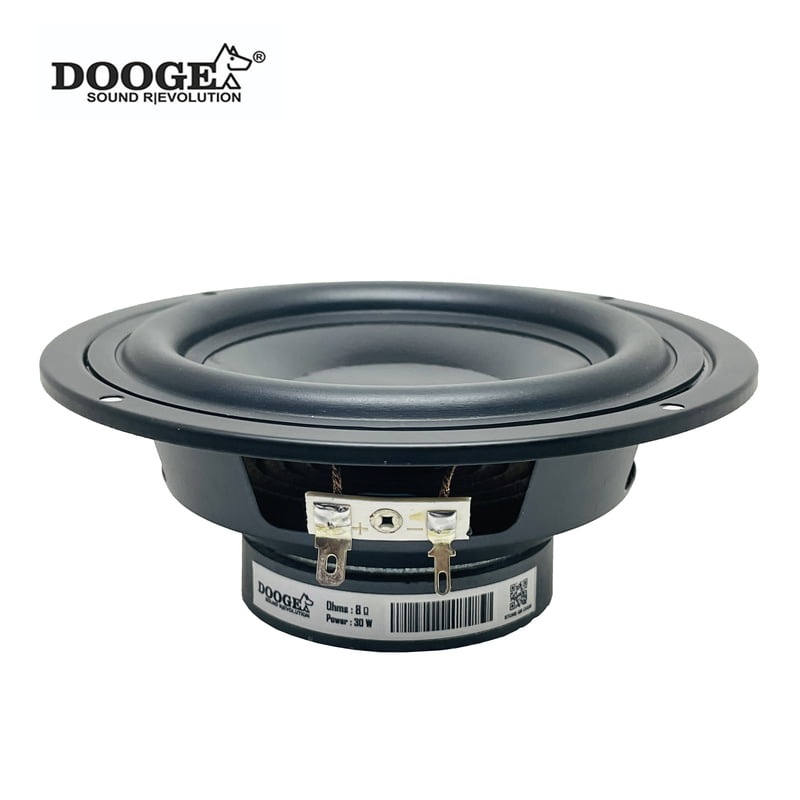

DE50M-01 Mid range 5" 4Ohms 30 Watts (1 Pcs)
Rs.899.00 Rs.1,499.00
DE50M-01 Mid range 5" 4 Ohms 30 Watts (1 Pcs). this is a great sounding woofer made from exotic materials for high end systems. it has a 70mm*15mm barium ferrite Y35 magnet. it has a coated paper cone material with rubber surrounding & dust cap is also coated paper. the frame is of iron.
Product Details
Electrical
Nominal Diameter - 5 Inch(186mm)
Nominal Impedance - 3.781 Ohms
Resonance Frequency - 83.27Hz
Sensitivity, 1W/1m(E) - 82.53dB
Power Capacity ,RMS(Pe) - 30W
Power Capacity ,Peak - 40W
Frequency Range(-10dB) - Fo -- 15 kHz
Qms - 5.24
Qes - 1.95
Qts - 1.42
BL - 3.14T*M
VAS - 5.7615 Ltr
BI(N/A) - 3.14
Mechanical
Voice Coil - 26mm
Winding Width - 7.5mm
Former - 2
Wire Type - CCAW
Magnet - 70mm Barium Ferrite
Cone Material - Coated paper
Surround Material - Rubber
Frame - Iron
Dust cap - Paper
