DE60C-02 Woofer 6" 8Ohms 50 Watts (1 Pcs)
Rs.1,299.00 Rs.1,999.00

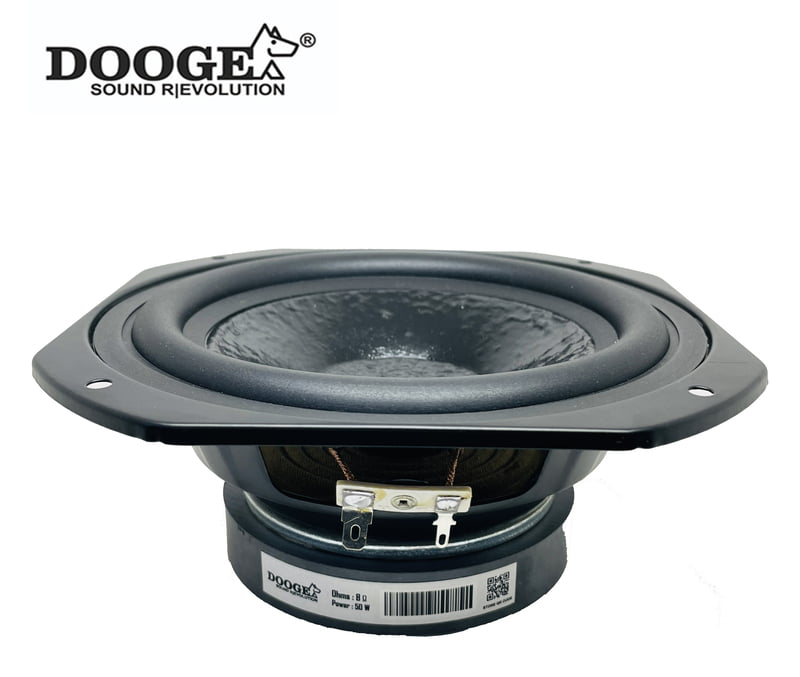

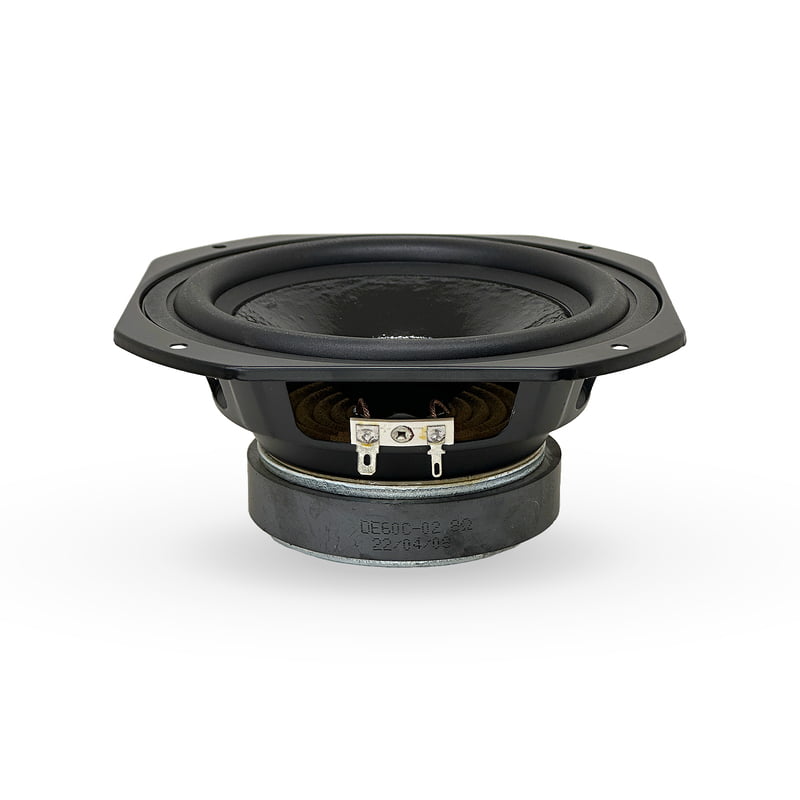

DE60C-02 Woofer 6" 8 Ohms 50 Watts (1 Pcs). this is a great sounding woofer made from exotic materials for high end systems. it has a 100mm*18mm barium ferrite Y35 magnet. it has a coated paper cone material with rubber surrounding & dust cap is also coated paper. the frame is of iron. For best result make Tower speaker use 2 pcs in a box and 1 tweeter with 2way crossover or 3 way system also we can build by adding DE50M-01 midrange and 3 way crossover.
Product Details
Electrical
Nominal Diameter - 6Inch(186mm)
Nominal Impedance - 8 Ohms
R(e) = 7.359 Ohms
Resonance Frequency - 54.57 Hz
Sensitivity, 1W/1m(E) - 82.17dB
SPL = 82.53 dB SPL 2.83 Vrms
Power Capacity ,RMS(Pe) - 50W
Power Capacity ,Peak - 80W
Q(ms) = 4.528
Q(es) = 1.461
Q(ts) = 1.104
V(as) = 9.578 Ltrs (0.3382 cubic feet)
BL = 5.88
Piston Diam. = 127 mm (5 in.)
C(ms) = 0.425 mm/N
L(e) = 0.3429 mH at 10kHz
n(0) = 0.1016 %
M(ms) = 20.02 grams
Mechanical
Voice Coil - 26mm
Winding Width - 13.5mm
Former - 2
Wire Type - Copper
Magnet - 100mm Barium Ferrite
Cone Material - Coated paper
Surround Material - Rubber
Frame - Iron
Dust cap - Coated paper
