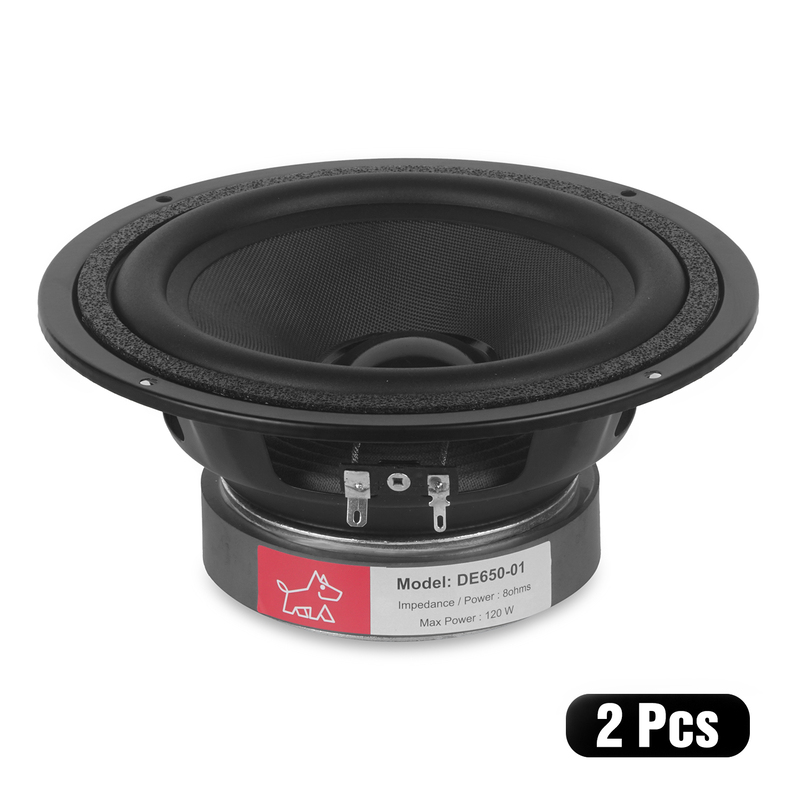

DE650-01 Paper cone Woofer 6.5" 8Ohms 120 Watts (2 Pcs)
Rs.2,399.00 Rs.3,999.00
FEATURES:
- 6.5 inch full frequency horn
- 100*20MM ferrite magnet double magnetic antimagnetic
- 30 core high temperature resistant voice coil ASV aluminum skeleton
- High strength backside iron basin rack
- Black Rubber Overhang paper cone
- Paper Black Reverse Paper Cap
- 55Hz-5KHz frequency response range
- 86dB sensitivity
- 120W rated power
- Suitable for bookshelf speaker, middle speaker and main speaker
SPECIFICATIONS:
- Nominal diameter: 6.5 inch
- Nominal impedance: 8 ohms
- Power rating: 120W
- Sensitivity(1w\1m): 85.29dB
- Frequency range: 55Hz-5KHz
- Voice coil diameter: Ф30
- Magnet dimension: 100*45*20
- Fs: 55.85 Hz
- Re: 6.346 Ohms
- Qms: 6.08
- Qes: 1.241
- Qts: 1.03
- Vas: 12.36 liters
- Cms: 0.499 mm/N
- n.(%): 0.1655 %
- BI: 5.403
