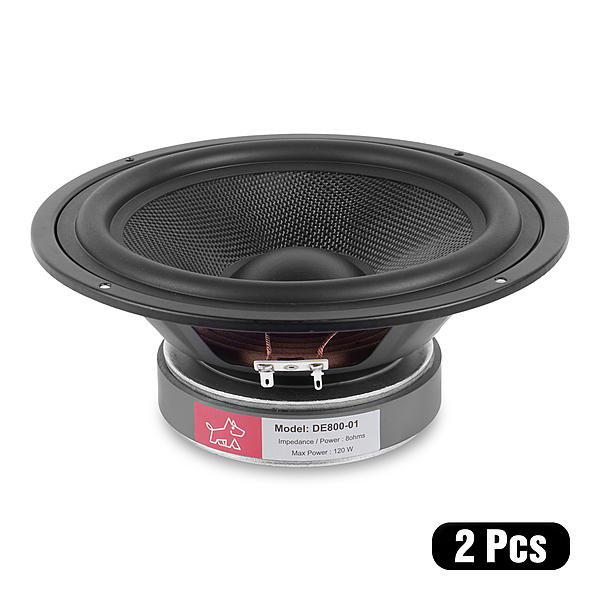

DE800-01 Woofer 8" 8Ohms 120 Watts (2 Pcs)
Rs.3,699.00 Rs.3,999.00
FEATURES:
- 8 inch full frequency horn
- 100 ferrite magnet double magnetic antimagnetic
- 35 core high temperature resistant voice coil ASV aluminum skeleton
- High strength backside iron basin rack
- Black Rubber Overhang Fiberglass Drum
- Paper Black Reverse Paper Cap
- 40Hz-4.5KHz frequency response range
- 89dB sensitivity
- 120W rated power
- Suitable for bookshelf speaker, middle speaker and main speaker
SPECIFICATIONS:
- Nominal diameter: 8 inch
- Nominal impedance: 8
- Power rating: 120W
- Sensitivity(1w\1m): 89dB
- Frequency range: 40Hz-4.5KHz
- Voice coil diameter: 035
- Magnet dimension: 0100*45*20
- Fs: 41.309 Hz
- Re: 6.800 Ohm
- Qms: 2.314
- Qes: 0.520
- Qts: 0.425
- Vas: 40.141 Ltr
- Cms: 548.685u M/N
- n.(%): 0.526%
- BI: 9.581 T
- Sd: 22.698K mm
