DE800-01 Woofer 8" 8Ohms 60 Watts (2 Pcs)
DE800-01 Woofer 8" 8Ohms 60 Watts (2 Pcs)
DE800-01 Woofer 8" 4Ohms 80 Watts (2 Pcs)
DE800-01 Woofer 8" 8Ohms 60 Watts (Set of 2)
DE800-01 Woofer 8" 8Ohms 60 Watts (Set of 2)
DE800-01 Woofer 8" 8Ohms 60 Watts (Set of 2)
DE800-01 Woofer 8" 8Ohms 60 Watts (Set of 2)
DE800-01 Woofer 8" 8Ohms 60 Watts (Set of 2)

DE800-01 Woofer 8" 4Ohms 80 Watts (2 Pcs)

Rs.2,799.00 Rs.3,599.00

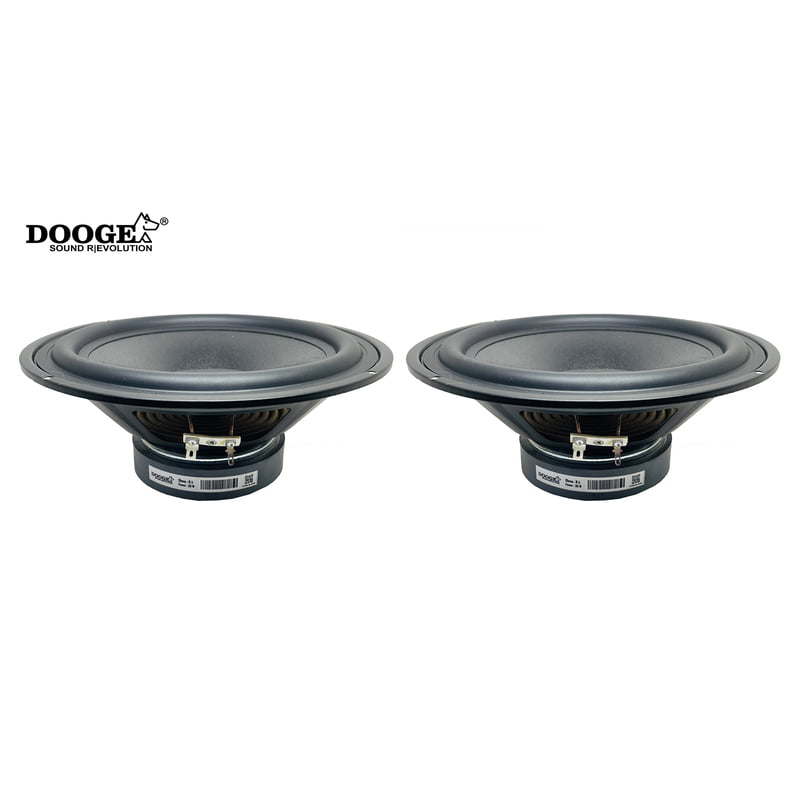

DE800-01 Woofer 8" 4 Ohms 80 Watts (2 Pcs). this is a great sounding woofer made from exotic materials for high end systems. it has a 100mm*20mm barium ferrite Y35 magnet. it has a coated paper cone material with rubber surrounding & dust cap is also coated paper. the frame is of iron.
Quantity
Add to Cart
Product Details
Electrical


Nominal Diameter - 8 Inch(210mm)



Nominal Impedance - 4 Ohms



R(e) = 3.652 Ohms


Resonance Frequency - 59.25 Hz


Sensitivity, 1W/1m(E) - 90.72 dB



SPL = 94.12 dB SPL 2.83 Vrms


Power Capacity ,RMS(Pe) - 80W


Power Capacity ,Peak - 120W


Q(ms) = 3.412


Q(es) = 0.7061


 Q(ts) = 0.585




V(as) = 25.9 liters (1.284 cubic feet)



BL - 6.243



Piston Diam. = 170.2 mm (7 in.)



C(ms) = 0.356 mm/N



L(e) = 0.4834 mH at 10kHz



n(0) = 0.7275 %



M(ms) = 20.24 grams


Mechanical

Voice Coil - 26mm

Winding Width - 12mm

Former - 4

Wire Type - copper

Magnet - 100mm Barium Ferrite

Cone Material - Coated paper

Surround Material - Rubber

Frame - iron

Dust cap - Coated paper


Here are the some examples of box design were we can use this woofers:

Example no.1) 3 way Tower Design
Example no.2) 3 way Box Design
Example no.3) 2 way Tower Design
Example no.4) 2 way Tower Design with 2 Tweeters
Example no.5) 2 way HIFI / Bookshelf Design
