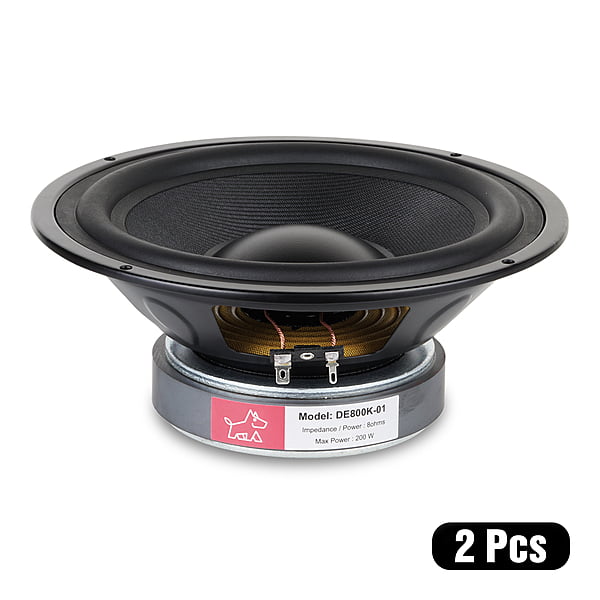

DE800K-01 Woofer 8" 8Ohms 100 Watts Kevlar cone (2 Pcs)
Rs.4,499.00 Rs.6,999.00
FEATURES:
- 8 inch full frequency horn
- Kevlar cone
- 120 ferrite magnet magnetic antimagnetic
- 35 core high temperature resistant voice coil ASV aluminum skeleton
- High strength backside iron basin rack
- Black Rubber Overhang Fiberglass Drum
- Paper Black Reverse Paper Cap
- 45Hz-5KHz frequency response range
- 87.8dB sensitivity
- 100W rated power
- Suitable for bookshelf speaker, middle speaker and main speaker
- Magnet: Ferrite
- Basket Material: Steel
SPECIFICATIONS:
- Nominal diameter: 8 inch
- Nominal impedance: 8
- Power rating: 100W
- Sensitivity(1w\1m): 87.8dB
- Frequency range: 45Hz-5KHz
- Voice coil diameter:Φ35 mm
- Magnet Size: 120 × 20 mm
- Fs: 40 Hz
- Qms: 2.547
- Qes: 0.649
- Qts: 0.517
- Vas: 39.87 L
- Mms: 26.362 g
- Sd: 216.4 cm²
- Cms: 0.599 mm/N
- BL: 8.576 T
- SPL vs Frequency graph included in the datasheet.
FREQUENCY & IMPEDANCE RESPONSE
