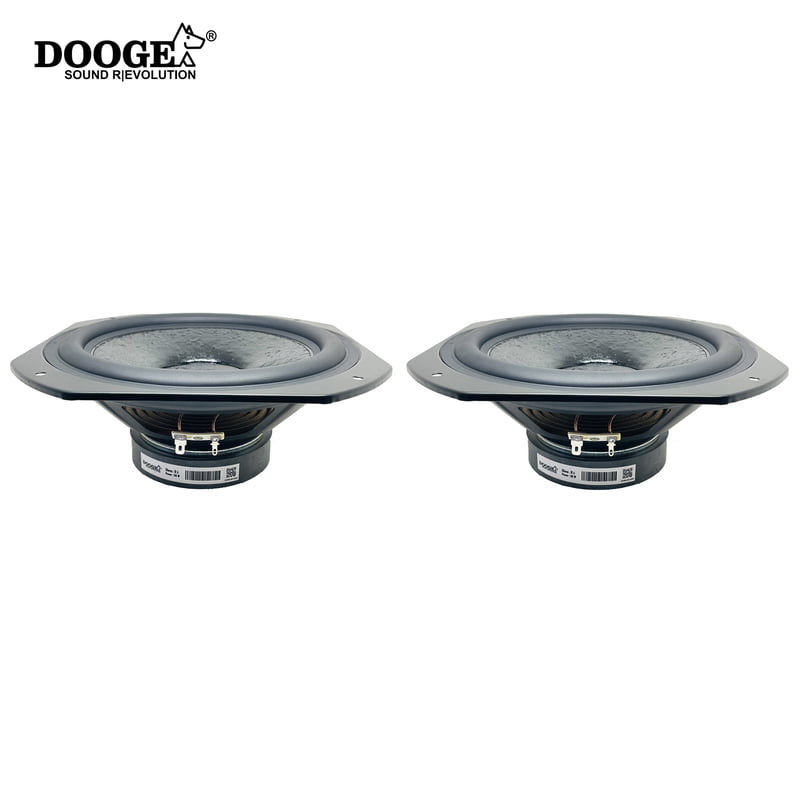

DE80C-02 Woofer 8" 8Ohms 80 Watts (2 Pcs)
Rs.2,799.00 Rs.3,999.00
Out of stock
DE80C-02 Woofer 8" 8 Ohms 80 Watts (2 Pcs). this is a great sounding woofer made from exotic materials for high end systems. it has a 100mm*20mm barium ferrite Y35 magnet. it has a coated paper cone material with rubber surrounding & dust cap is also coated paper. the frame is of iron. For best result make Tower speaker use 2 pcs in a box and 1 tweeter (Matching tweeter DE20C-05) with 2way crossover or 3 way system also we can build by adding DE50M-01 midrange and 3 way crossover.
Product Details
Electrical
Nominal Diameter - 8 Inch(225mm)
Nominal Impedance - 8 Ohms
R(e) = 7.313 Ohms
Resonance Frequency - 66.28 Hz
Sensitivity, 1W/1m(E) - 88.25 dB
Power Capacity ,RMS(Pe) - 80W
Power Capacity ,Peak - 120W
Q(ms) = 3.438
Q(es) = 1.82
Q(ts) = 1.19
V(as) = 27.01 liters (0.954 cubic feet)
BL = 5.883
Piston Diam. = 182.9 mm (7.2 in.)
C(ms) = 0.279 mm/N
L(e) = 0.286 mH at 10kHz
n(0) = 0.4121 %
M(ms) = 20.68 grams
Mechanical
Voice Coil - 26mm
Winding Width - 13.5mm
Former - 2
Wire Type - copper
Magnet - 100mm Barium Ferrite
Cone Material - Coated paper
Surround Material - Rubber
Frame - iron
Dust cap - Coated paper
