DE80S-03 Subwoofer 8" 4Ohms 120 Watts (1 Pcs)
Rs.1,799.00 Rs.2,999.00

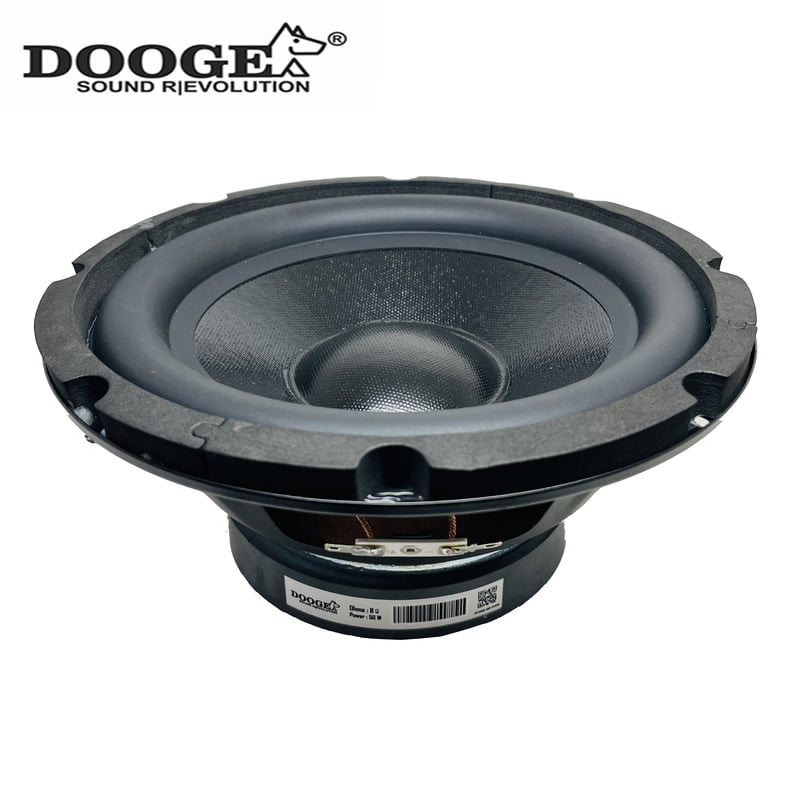

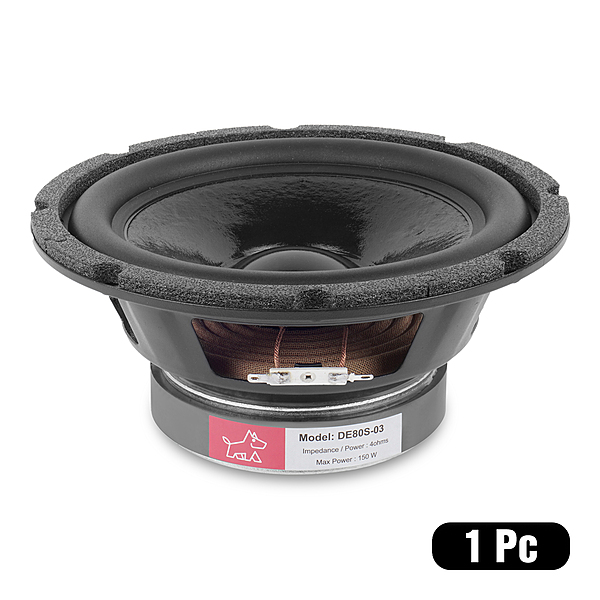

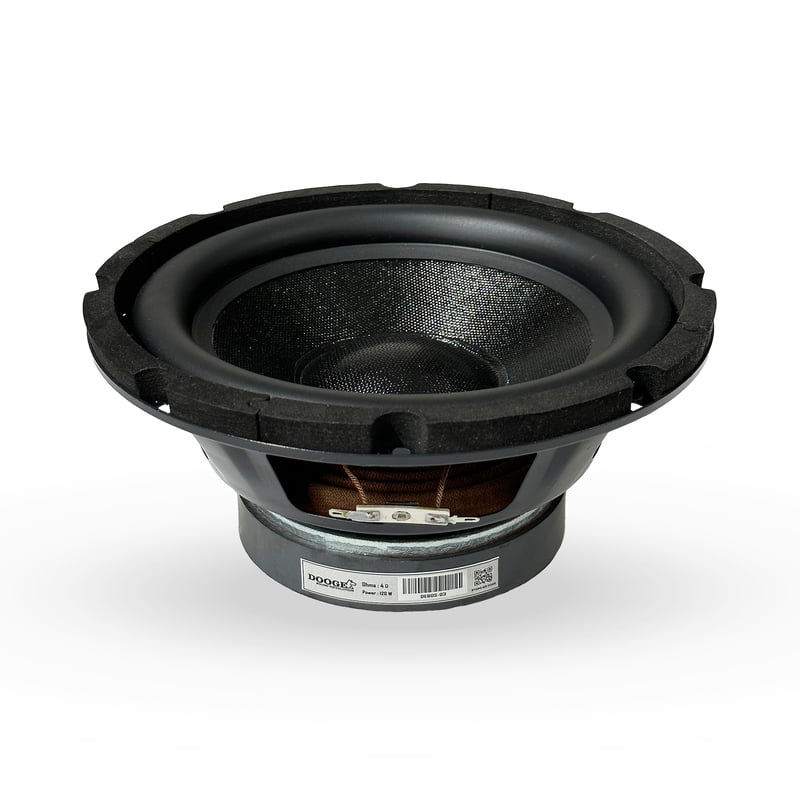

DE80S-03 Subwoofer 8" 4 Ohms 120Watts (1 Pcs). this is a great sounding subwoofer made from exotic materials for high end systems. it has a 120mm*20mm barium ferrite Y33 magnet. it has a coated paper cone material with rubber surrounding & dust cap is also coated paper. the frame is of iron.
Product Details

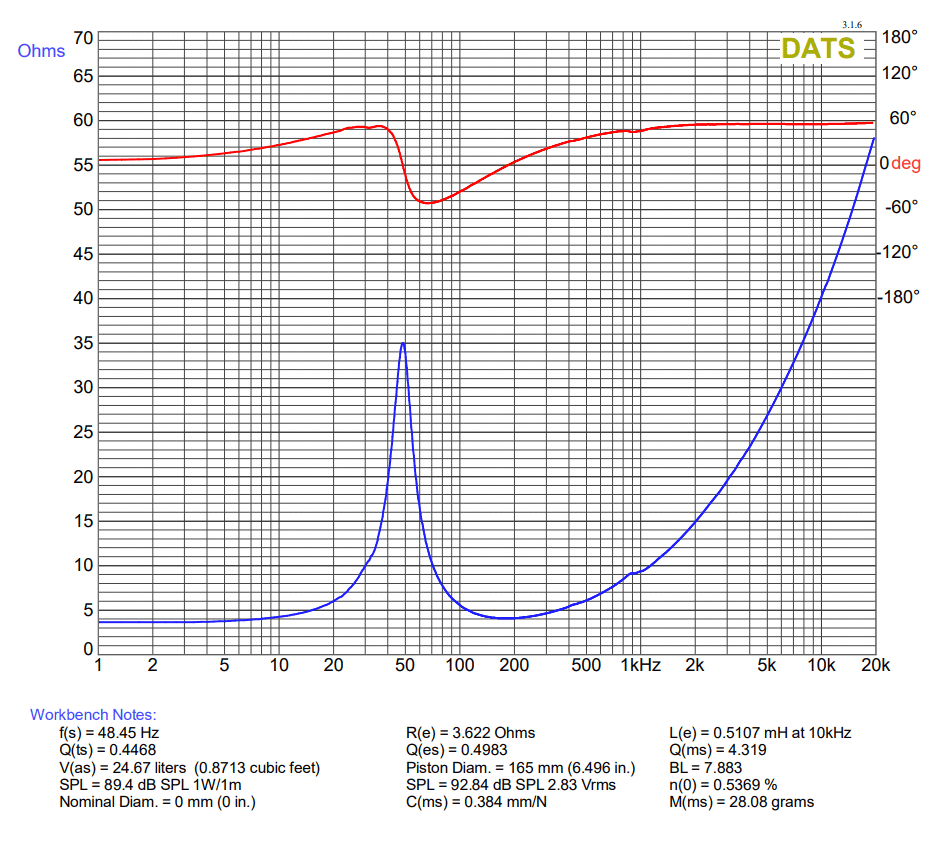

Electrical
Nominal Diameter - 8 Inch(210mm)
Nominal Impedance - 4 Ohms
R(e) = 3.653 Ohms
Resonance Frequency - 49.7 Hz
Sensitivity, 1W/1m(E) - 85.88 dB
SPL = 89.28 dB SPL 2.83 Vrms
Power Capacity ,RMS(Pe) - 120W
Power Capacity ,Pak - 150W
Qms - 3.824
Qes - 0.687
Qts - 0.5824
VAS - 14.01 liters (0.4949 cubic feet)
BL - 8.844
Piston Diam. = 165.1 mm (6.5 in.)
C(ms) = 0.218 mm/N
L(e) = 0.6247 mH at 10kHz
n(0) = 0.2387 %
M(ms) = 47.12 grams
Mechanical
Voice Coil - 38mm
Winding Width - 12mm
Former - 4
Wire Type - copper
Magnet - 120mm Barium Ferrite
Cone Material - Coated paper
Surround Material - Rubber
Frame - iron
Dust cap - Coated paper
