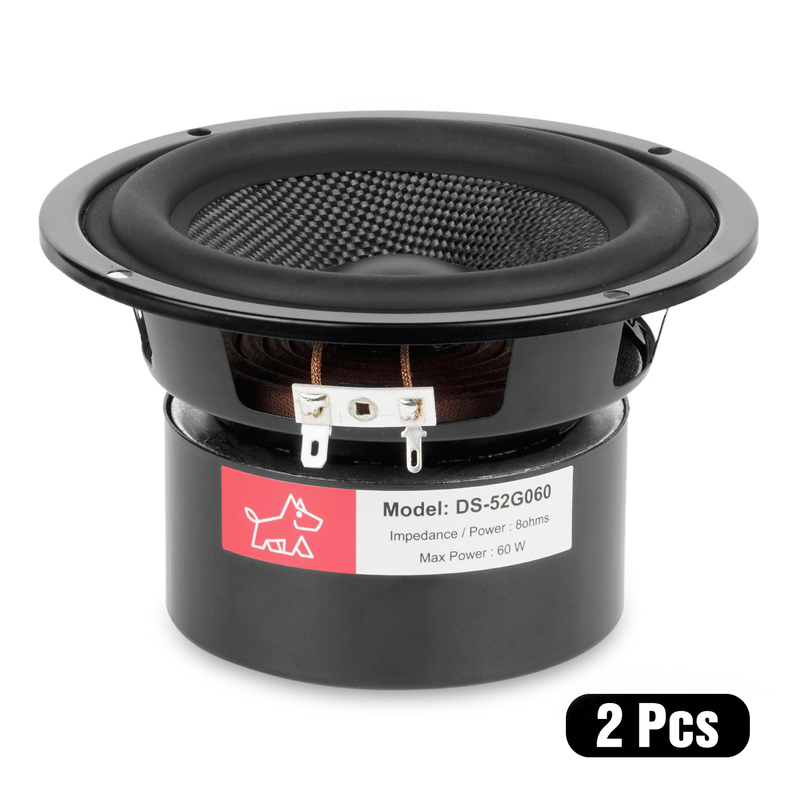

DS-52G060 5..25" MID BASS 8 Ohms Double magnet Hifi Driver ( 2 pcs )
Rs.2,499.00 Rs.3,999.00
- 5.25 inch full range woofer
- 90 ferrite magnet
- 25 core high temperature resistant voicecoil,
- ASV aluminum bobbin
- High strength reversed steel basket
- Glass Fiber Cone,
- Double magnet with magnet shield cover
- Frequency Response:53Hz-10K Hz
- 86dB Sensitivity
- 60W rated power
- Suitable for bookshelf speaker,Center Speaker , and floorstand speaker
Product Details
- Nominal diameter: 5.25 inch
- Nominal impedance: 8Ω
- Power Rating: 60W
- Sensitivity(1w\1m): 86dB
- Frequency Range: 53Hz-10K Hz
- Voice Coil Diameter: Ø25
- Magnet dimension: 90*32*20mm 80*40*15mm
- Fs: 53.037Hz
- Re: 7.200 Ohm
- Qms: 2.634
- Qts: 0.496
- Vas: 9.474
- Cms: 889.801u M/N
- n.(%): 59.7%
- Bl: 6.306T
- Sd: 8.659m
